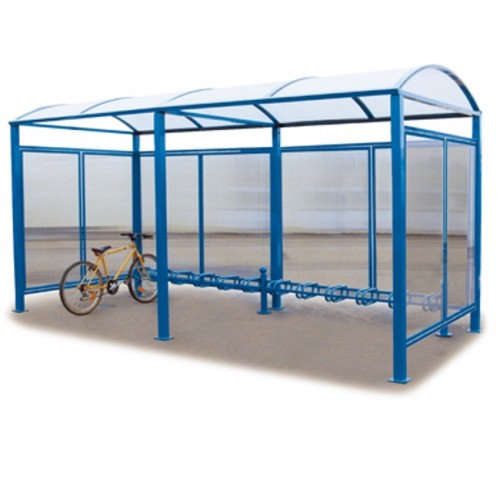

The Voute XXL is a multi-functional shelter system that can be used for many different applications including as a bus shelter, smoking shelter, cycle shelter or as a covered walkway.

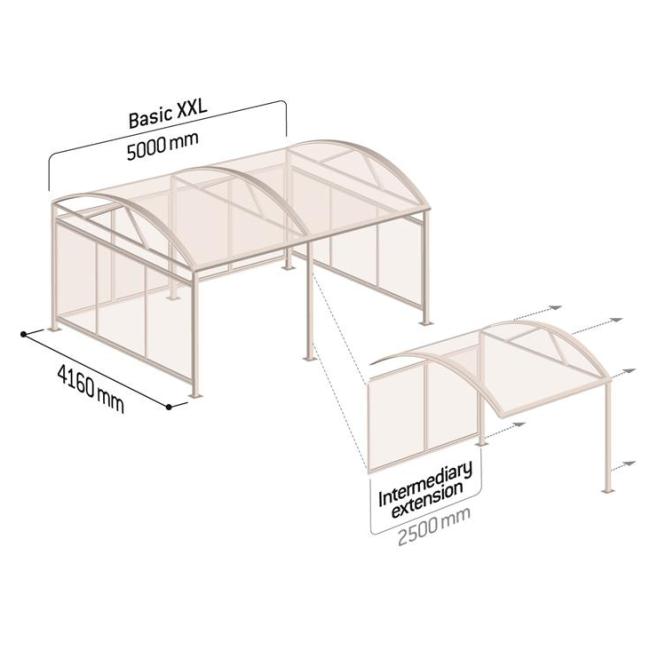

The shelter is ideally suited to busy areas and can be extended when required using the optional extension units.

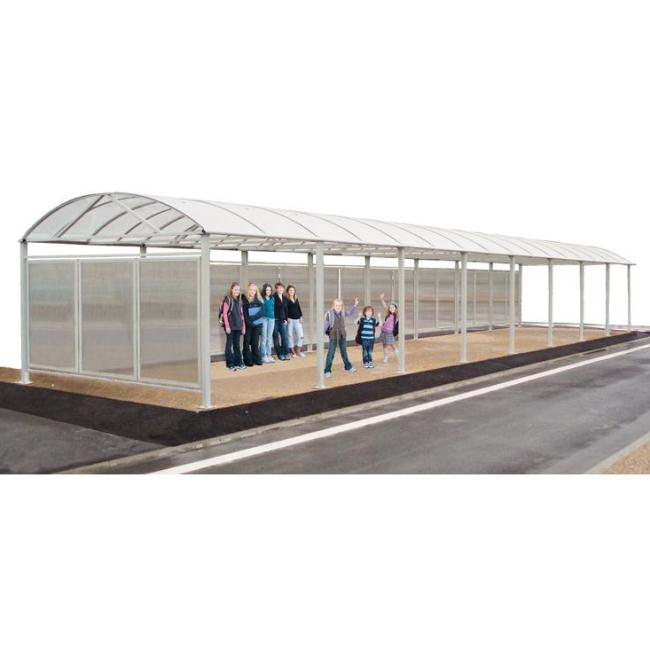

Please note the image shows the Voute XXL shelter with optional extensions and accessories.
Frame:
- 80 x 80mm steel tube used for the square posts
- Welded base plates allow ground fixing using bolts
- Roof framework features tubular aluminium crossbeams
- Two aluminium rainwater gutters fixed to built-in U-shaped sections of uprights
Canopy:
- 6mm translucent anti-UV cellular polycarbonate glazing
Optional Cladding:
- Aluminium profile frame
- Glazing made of translucent cellular UV stabilised 10mm polycarbonate
Assembly & Installation:
- Each shelter is supplied with assembly and installation instructions
- Professional installation can be arranged at extra cost – please call us for a quotation
Specification
- Construction Material
- Aluminium
- Height - mm
- 3010
- Length - mm
- 5000
- Width - mm
- 4160
- Colour
