Rainwater Harvesting Filter VF1

• Water and dirt are separated to stop any contamination
• Cleaned water can be used in washing machines, toilets and gardening water among other uses
• Relatively lightweiught manufacturing, easy to transport if needed (when cleaning)
• Water thravels through two layers to make sure it reduces any contamination

The rainwater harvesting volume filter VF1 is designed for use inside a water tank but can also be used as a pre-tank filter. It utilises a two stage cleaning process which gives a high level of filter of filtering efficiency and the steeply inclined filter cartridge means the dirt is continuously washed away into the sewer.

Connection capacity for roof areas up to 350m²

The filter is low maintenance, with the filter easily removable for cleaning and does not have to be changed.

Please Note: We recommend the filter should be cleaned twice a year.

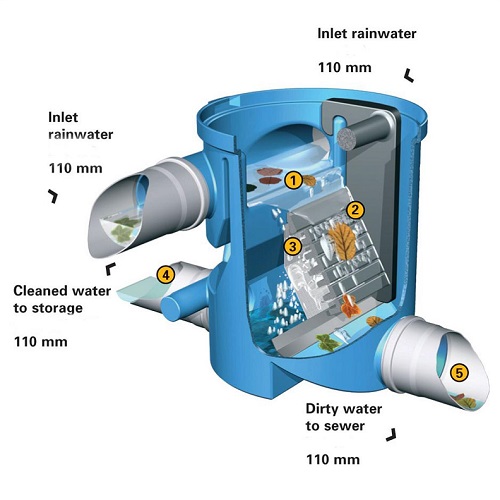

How it works:

1. As the water arrives, the level builds up and is equally distributed across the cascade.
2. The first cleaning stage takes place with the largest dirt particles led across the primary filter cascades directly to the sewer.
3. The water then flows over the second cleaning stage. Due to the special mesh (0.65mm) structure of the sieve, any dirt is washed away into the sewer.
4. The cleaned water is absorbed in the middle tank and directed through one of the two connections into the storage.
5. Dirt goes into the sewer through the shaft.

Technical data:

Rainwater inlet: 2x DN 100
Outlet into tank: DN 100
Outlet into sewer: DN 125
Housing and cascade material: Polyethylene
Filter cartridge: Stainless steel
Mesh size: 0.65mm
Weight: 6.2 kg
