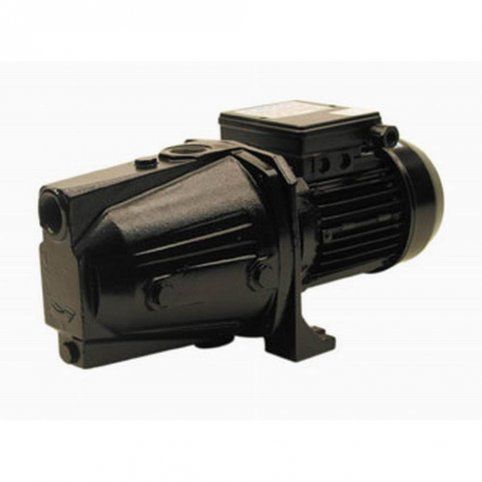

This self-priming jet pump is used mainly in booster systems, washing systems and garden systems and is suitable for use clean water only. It is not suitable for use with suspended solids or abrasive materials.
- Cast iron pump body and motor support
- Noryl impeller, diffuser and venturi
- Carbon mechanical seal
- Stainless steel shaft
- IP44 TEFC continuous rated motor
- Quiet operation
- Available in 110v, 230v and 415v 50Hz
- 1Kw
- 70 L/Min maximum flow
- 50 Metres maximum head
- 8 Metres maximum suction head
- 1” BSP female inlet and outlet
Specification
Model KG H x W x L (mm) L/Min Max. Head kW JET 1000M 230v 17.8 190 x 182 x 425 70 50m 1 JET 1000T 415v 17.8 190 x 182 x 425 70 50m 1 JET 1000M 110v 17.8 190 x 182 x 425 70 50m 1
Specification
- Weight - kg
- 17.8
- Length - mm
- 425
- Width - mm
- 182
- Height - mm
- 190
- WRAS Approved
- No
- Float Switch
- No
