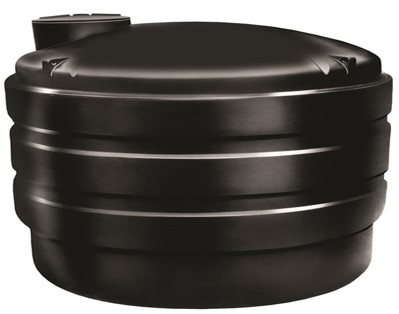

Paxton CT2200JB Underground Water Tank - 10,000 Litres

This WRAS approved tank has a substantial 10,000 litre (2200 gallons) capacity and is suitable for above or below ground use. It is manufactured from UV stabilised medium density moulded polyethylene (MDPE) and features a one piece design to ensure long-term strength and durability.

Being made from this material means the tank is impact resistant, will not rust or corrode and can withstand extreme frost conditions up to -40 degrees C. The large wall thickness also enables the tank to withstand the pressure of being located underground.

The tank conforms to WRAS (Water Regulations Advisory Scheme) potable water standards and regulations for the safe storage of drinking water if it is fitted with the optional byelaw 30 kit.

Popular uses for this tank include:

• Brewing and wine making
• Back-up emergency drinking water supply
• Food industry
• Rainwater harvesting applications
• Irrigation agriculture
• Temporary water supply for festivals
• Water for livestock
• Civil engineering applications where mains water is not available
• Bulk water storage

Tank Features:

• 10,000 litre capacity
• Suitable for above or below ground use
• WRAS approved
• Suitable for potable water (100% food grade material used throughout)
• Manufactured in the UK
• Ideal for use with rainwater harvesting equipment
• Robust, one-piece, stress free moulding
• Made from tough medium density moulded polyethylene (MDPE)
• UV stabilised and frost resistant to -40 degrees C
• Built in lifting lugs
• Smooth hygienic surfaces
• Large screw in lid
• Flat area for outlets and connections
• Optional 2" outlet available
• Optional Byelaw 30 kit available

The tank is fitted with built in lifting lugs for lifting the tank when it is empty and features a large screw in lid for ease of access and inspection. There is a “flat” area to make it easier to attach fittings.

100% food grade material is used throughout the tank’s construction meaning it is simple to clean thanks to the smooth inner surfaces which allows drinking water to be stored in a perfectly hygienic manner.

Dimensions

Diameter: 2515mm

Height: 2575mm (2540mm to top of dome)

Capacity: 10,000 Litres (2200 Gallons)

Manhole Internal: 546mm

Vented Insert Internal: 127mm
