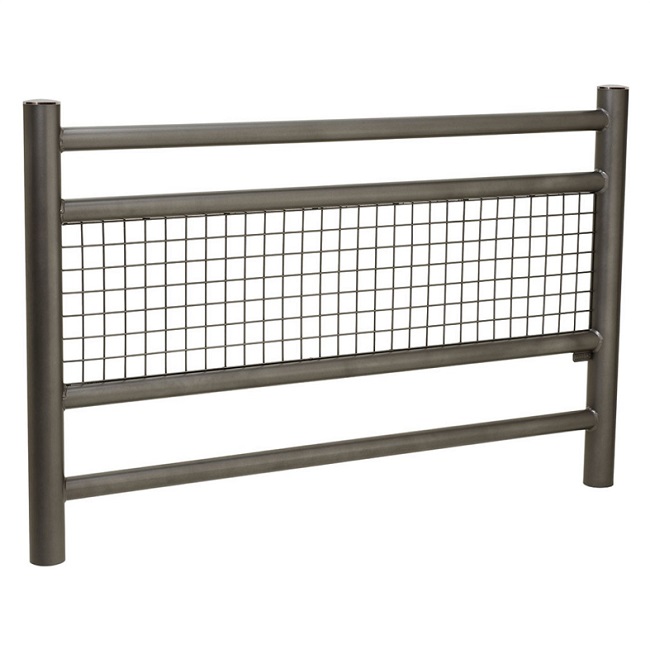

Linea Railing

The Linea Railing is designed for separating pedestrians from traffic and features a modern design with a mesh panel designed to block objects being thrown up from the road.

Specification

• Manufactured from galvanised steel
• 76mm diameter steel outer posts
• 50mm diameter steel horizontal cross bars
• 4mm diameter mesh
• Mesh holes 45 x 45mm
• Zinc primed and coated in one of our standard RAL colours
• Choice of decorative top caps
• 1572mm length
• 1180mm height
• Designed to be concreted directly into the ground

Installation

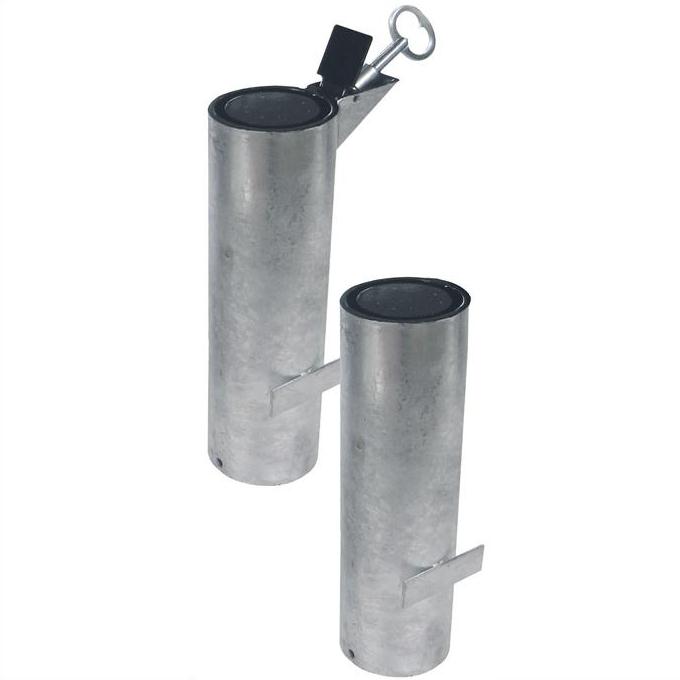

The Linea Railing is designed to be concreted directly into the ground for a permanent siting, however the railings can be made removable using our Lockblock socket system.

The Lockblock sockets provide total stability and security and are locked and unlocked using an 11mm triangle key. A static galvanised central boss sits flush with the ground to ensure there is no trip hazard when the railing is removed.

Advantages of using Lockblock sockets are:

• The railing remains perfectly stable as if it is concreted in
• The sockets are 100% galvanised for complete corrosion protection
• Rainwater drains naturally through sub-surface gravel
• A reservoir allows for the collection of sand and gravel
• The lock is protected by a black lacquered flap
• 180mm of the railing sits inside the socket to ensure a constant height

All Lockblock Sockets are supplied in pairs.
