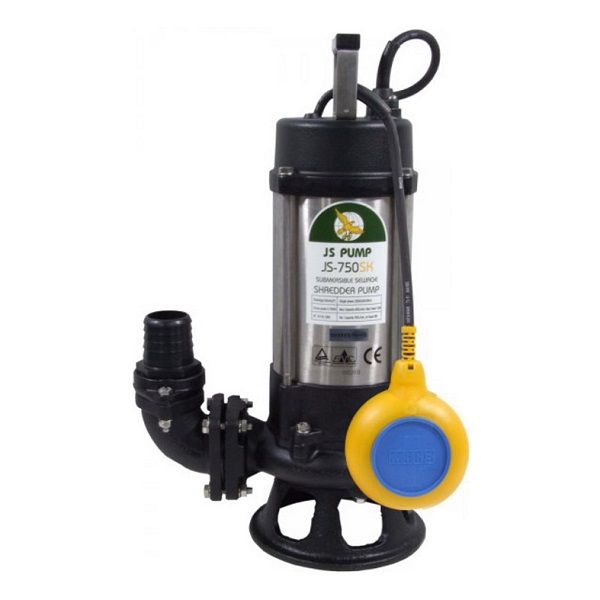

The SK Series by JS Pump is a range of submersible sewage pumps featuring a single channel cutter impeller. The tungsten carbide tipped impeller runs against a grinding diffuser plate, shredding and cutting soft solids in to smaller parts to pump through the body to waste.
- Cast iron pump body, volute stand, impeller, lower motor bearing/seal housing and motor top cover
- Stainless steel shaft and motor casing
- Twin mechanical seals – Carbon ceramic and silicon carbide
- Supplied with 10 metres of power cable
- Single channel cutter impeller
- Available in 230v manual or automatic & 110v manual or automatic
- 400 L/Min maximum flow
- 14 Metres maximum head
- 2” BSP Female outlet with hose tail connection
Specification

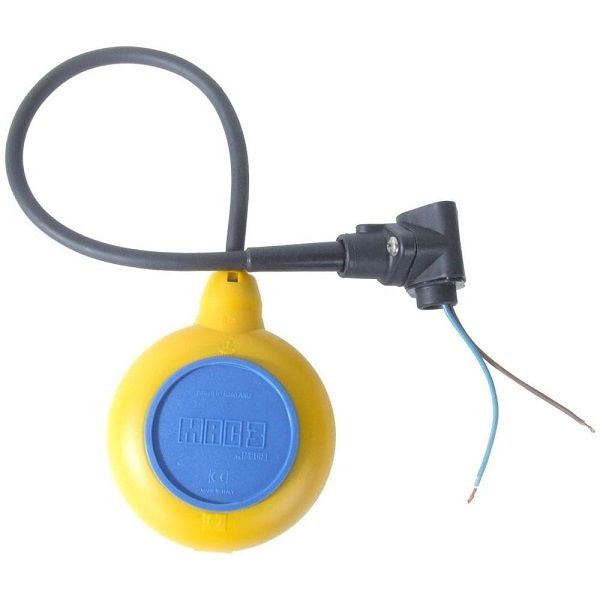

Model KG H x W x L (mm) L/Min Max. Head kW JS-750 SK Manual 230v 29.4 530 x 190 x 310 400 14m 0.75 JS-750 SK Automatic 230v 29.4 530 x 190 x 310 400 14m 0.75 JS-750 SK Manual 110v 29.4 530 x 190 x 310 400 14m 0.75 JS-750 SK Automatic 110v 29.4 530 x 190 x 310 400 14m 0.75 The automatic versions of this pump are supplied with a MAC3 float switch. The float switch is manufactured from strong and durable materials and is fitted to the pump prior to shipping. Allow approximately 300mm space away from the pump for the float switch to operate.
Specification
- Weight - kg
- 29.4
- Length - mm
- 310
- Width - mm
- 190
- Height - mm
- 530
- WRAS Approved
- No
- Float Switch
- No
