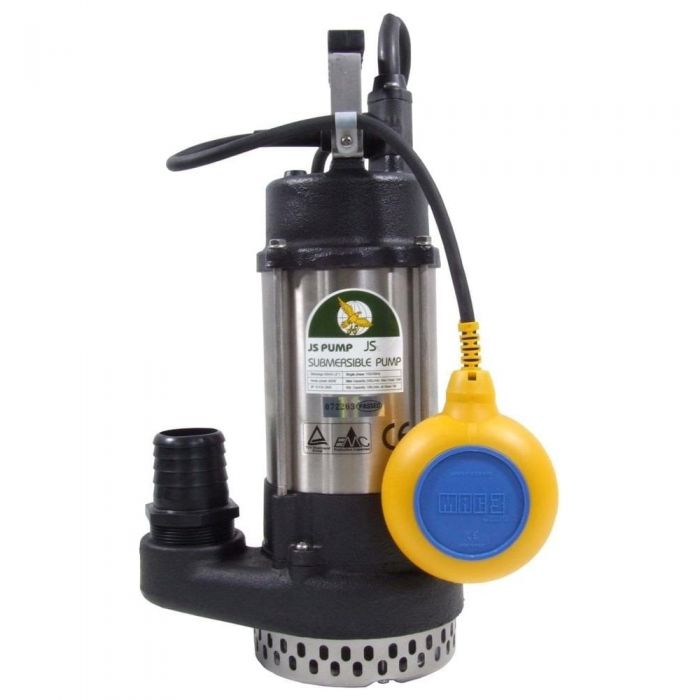

The JS 250 has been designed for the professional user and is suitable for continuous applications such as site drainage of clean and dirty water.
- Stainless steel motor case and shaft
- Cast iron impeller, lower motor/seal housing, motor top cover and volute
- Twin mechanical seals, carbon ceramic and silicon carbide in a lubricated chamber
- Complete with 10 metres of power cable
- Available in 110v and 230v 50Hz with manual or automatic operation
- 0.25 Kw
- 200 L/Min maximum flow
- 10 Metres maximum head
- 1” BSP male outlet c/w hose tail connection
Specification

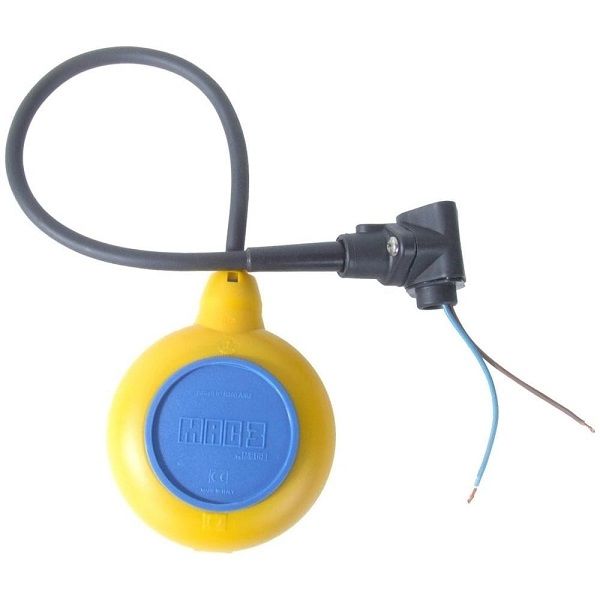

Model KG H x W x L (mm) L/Min Max. Head kW JS-250 Manual 230v 12.5 370 x 150 x 220 200 10m 0.25 JS-250 Automatic 230v 12.5 370 x 150 x 220 200 10m 0.25 JS-250 Manual 110v 12.5 370 x 150 x 220 200 10m 0.25 JS-250 Automatic 110v 12.5 370 x 150 x 220 200 10m 0.25 The automatic versions of this pump are supplied with a MAC3 float switch. The float switch is manufactured from strong and durable materials and is fitted to the pump prior to shipping. Allow approximately 300mm space away from the pump for the float switch to operate
Specification
- Weight - kg
- 12.5
- Length - mm
- 220
- Width - mm
- 150
- Height - mm
- 370
- WRAS Approved
- No
- Float Switch
- No
