The SV Series by JS Pump is a range of submersible sewage pumps which allow soft solids to pass through the pump body before going to waste.
- Cast iron pump body, volute stand, impeller, lower motor bearing/seal housing and motor top cover
- Stainless steel shaft and motor casing
- Twin mechanical seals – Carbon ceramic and silicon carbide
- Supplied with 10 metres of power cable
- Single channel cutter impeller
- Available in 230v manual or automatic
- 700 L/Min maximum flow
- 10 Metres maximum head
- 3” BSP Female outlet with hose tail connection

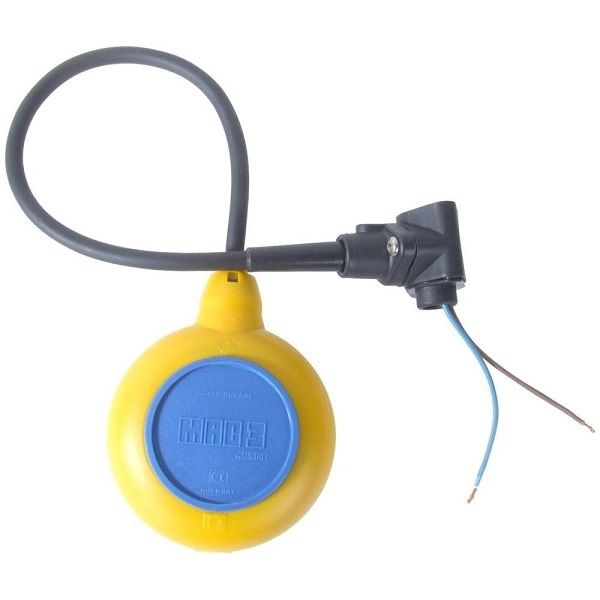

Model KG H x W x L (mm) L/Min Max. Head kW JS-1500 SV Manual 230v 44 610 x 190 x 370 700 10m 1.5 JS-1500 SV Automatic 230v 44 610 x 190 x 370 700 10m 1.5 The automatic versions of this pump are supplied with a MAC3 float switch. The float switch is manufactured from strong and durable materials and is fitted to the pump prior to shipping. Allow approximately 300mm space away from the pump for the float switch to operate.
Specification
- Weight - kg
- 44
- Length - mm
- 370
- Width - mm
- 190
- Height - mm
- 610
- WRAS Approved
- No
- Float Switch
- No
