The Conviviale Mesh Railing has been designed for the purpose of allowing pedestrians to lean on it while the mesh panel is designed to block objects thrown up from the road.

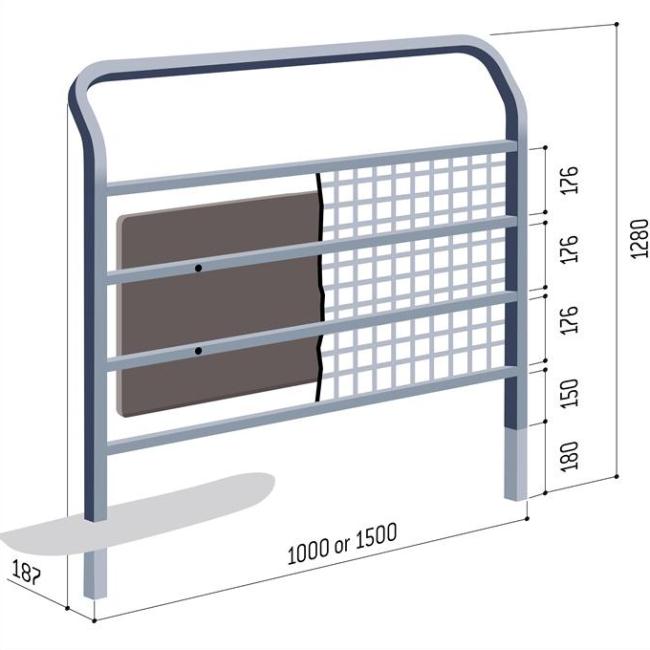

Specification
- Manufactured from galvanised steel
- 40 x 40mm steel outer posts
- 30 x 30mm steel horizontal cross bars
- 5mm diameter mesh
- Zinc primed and coated in one of our standard RAL colours
- 1500mm length
- 1280mm height
- Designed to be concreted directly into the ground
Installation

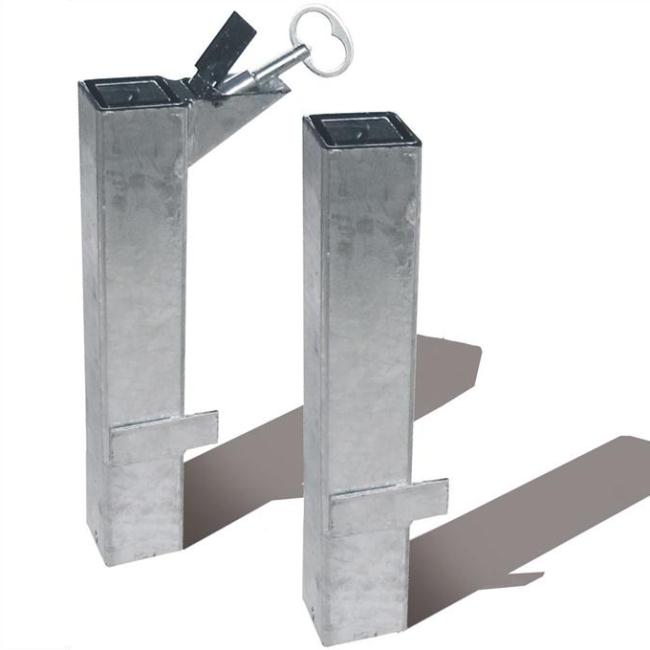

The Conviviale Mesh Railing is designed to be concreted directly into the ground for a permanent siting, however the railings can be made removable using our Lockblock socket system.
The Lockblock sockets provide total stability and security and are locked and unlocked using an 11mm triangle key. A static galvanised central boss sits flush with the ground to ensure there is no trip hazard when the railing is removed.
Advantages of using Lockblock sockets are:
- The railing remains perfectly stable as if it is concreted in
- The sockets are 100% galvanised for complete corrosion protection
- Rainwater drains naturally through sub-surface gravel
- A reservoir allows for the collection of sand and gravel
- The lock is protected by a black lacquered flap
- 180mm of the railing sits inside the socket to ensure a constant height
All Lockblock Sockets are supplied in pairs.
Specification
- Length - mm
- 1500
- Height - mm
- 1280
- Construction Material
- Mild Steel
- Colour
