- Automatic shut off valve closes when the tank is full, preventing overfilling and spilling diesel
- Three stay open latch positions for convenient use
- Includes 3/4” BSP swivel adaptor

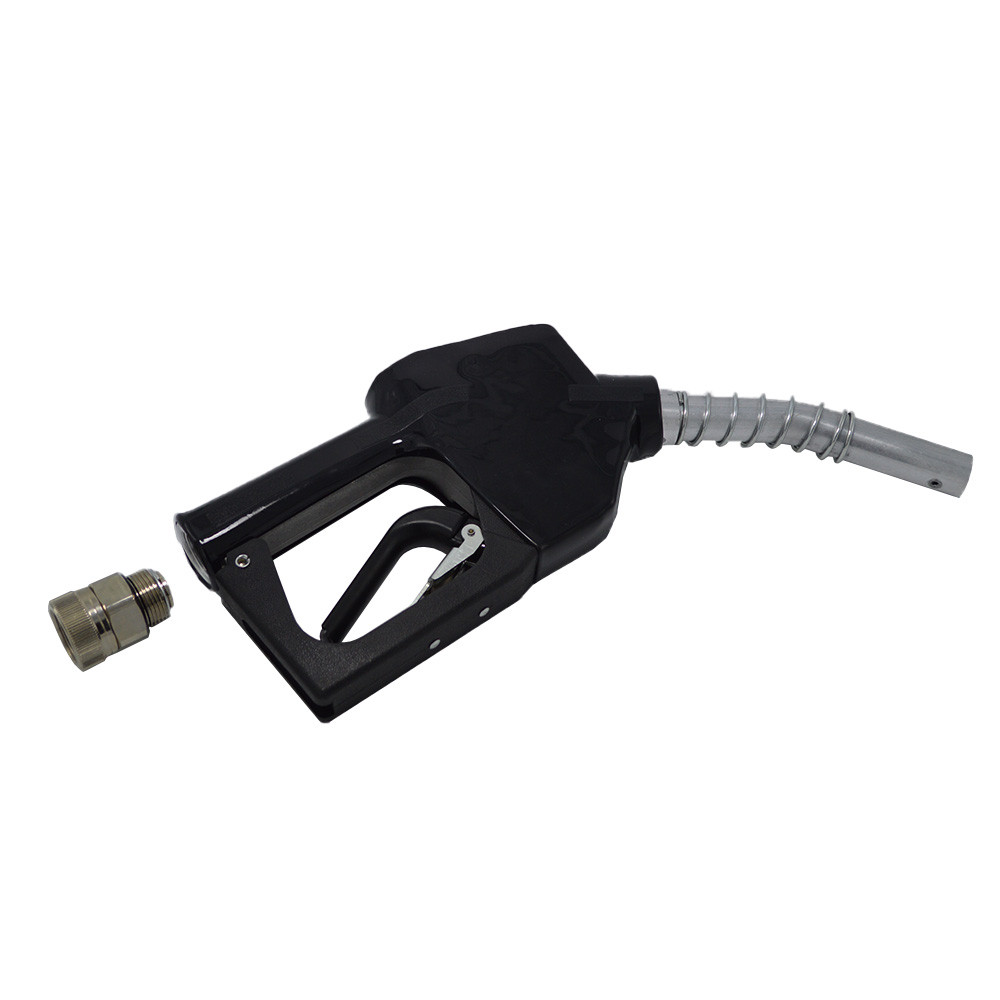

An economical, convenient diesel transfer nozzle with auto shut off valve. Ideal for refuelling vehicles, or filling drums and jerry cans with diesel and other liquids.
The nozzle is constructed from Aluminium alloy with a plastic outer casing, and is suitable for oil and other thick liquids including petrol, diesel, kerosene, methanol and others.
Includes a three position stay open latch for convenient and easy fluid transfer, whilst still providing control over the flow rate.
For use with electric pumps with a maximum flow rate of 50 litres per minute. Gravity fed systems cannot provide adequate pressure.

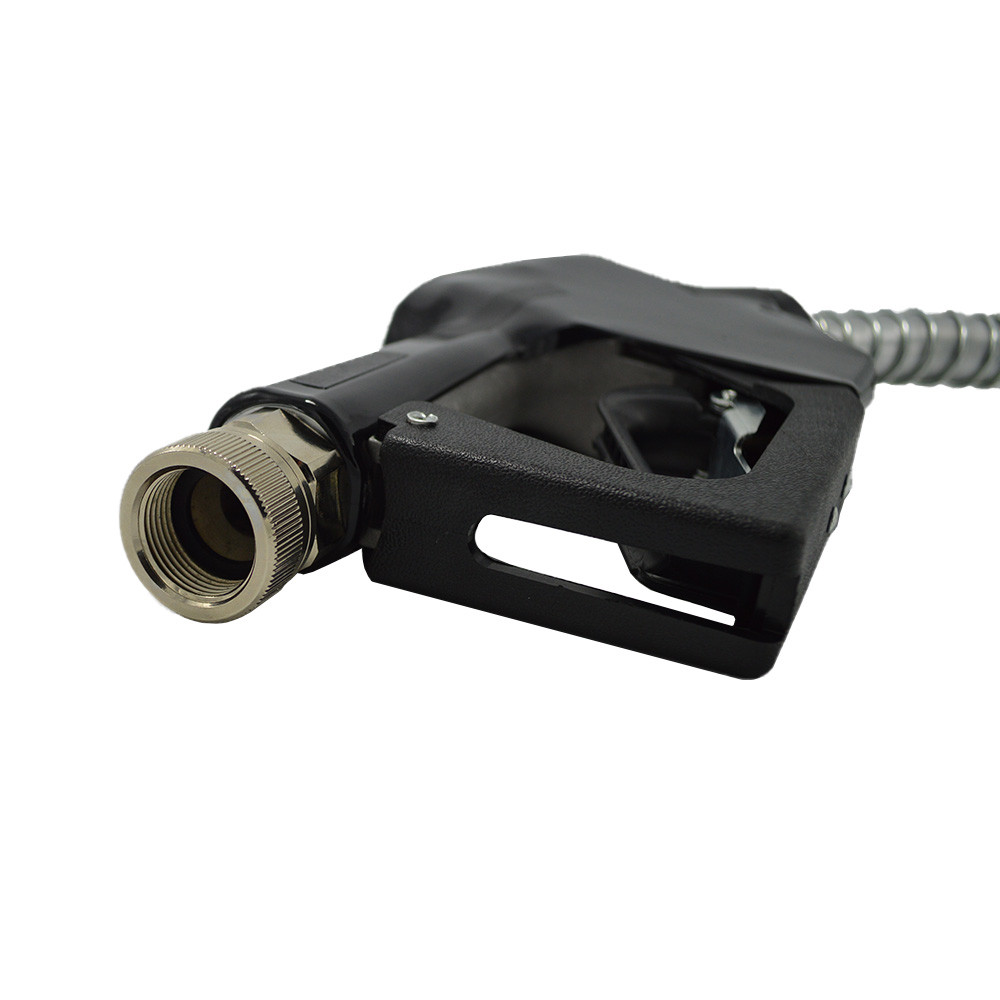

We include a 3/4” BSP Female swivel adaptor as standard.
Specification
- Length - mm
- 365
- Width - mm
- 230
- Height - mm
- 50
- Weight - kg
- 1
- WRAS Approved
- No
- Suitable for Drinking Water (Potable)
- No
- Outlet
- ¾″ BSP Female
- Flow Rate - Litres Per Min
- 50
- Suitable for:
- Diesel
- Construction Material
- Aluminium Alloy
- Warranty
- 1 Year
