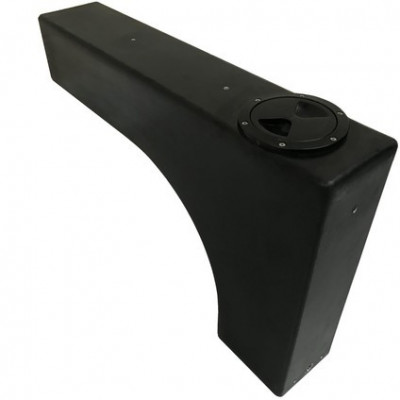

24 Litre Wheel Arch Tank

The unique curved design of the 24-litre Wheel Arch Tank enables it to fit over the wheel arches of many motorhomes, pickups and vans, including the VW T5 and T6 Transporters. It is ideal for campervan, specialist coach and lorry conversions where you need a larger internal fresh water tank.

As well as maximising vehicle space by providing a safe storage solution, there are also a range of additional options available (see below) to guarantee a swift and trouble-free installation.

Features

• 24 litre capacity
• Compatible with many motorhomes, pickups and vans
• Ideal for campervan, specialist coach and lorry conversions

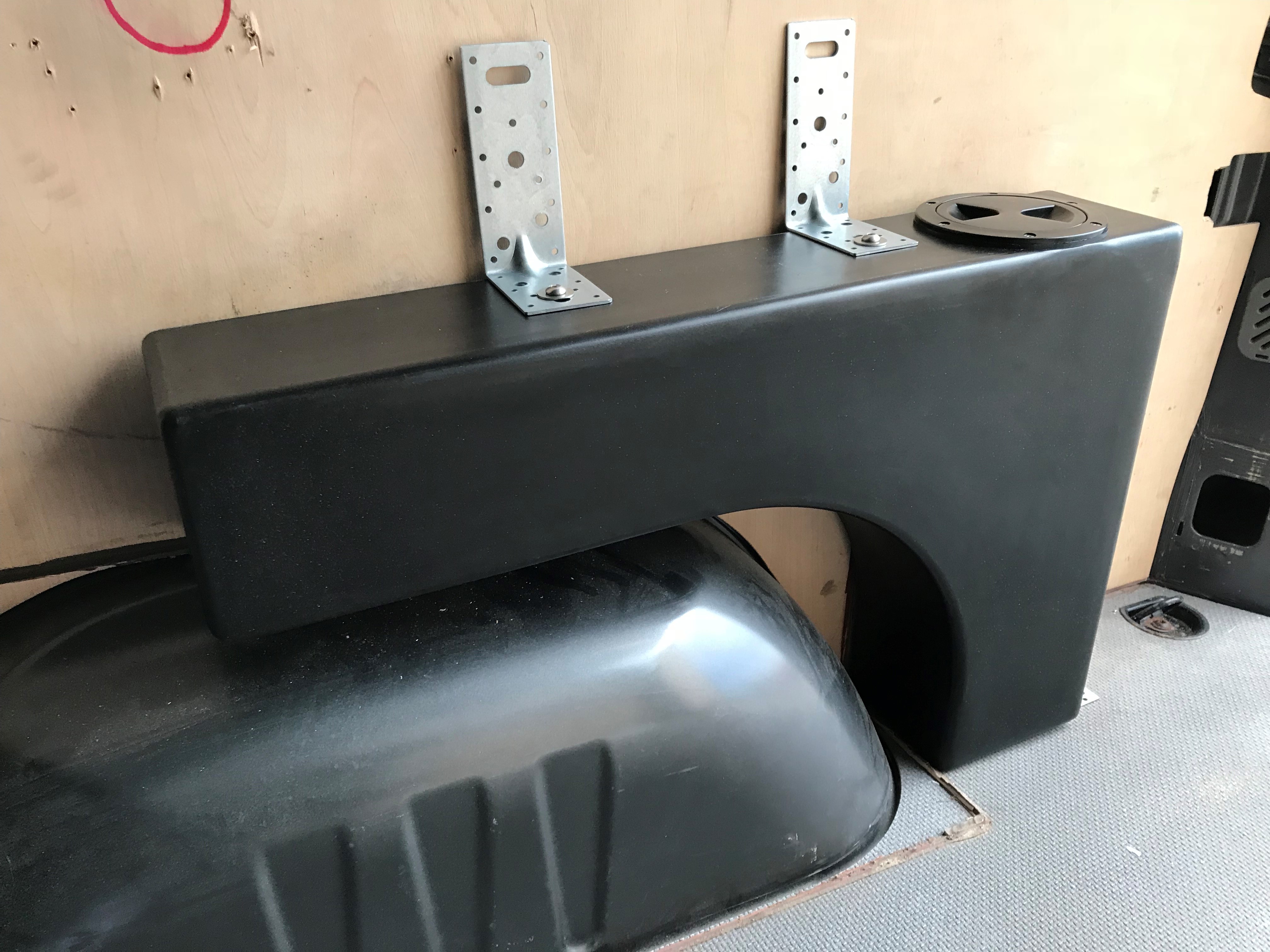

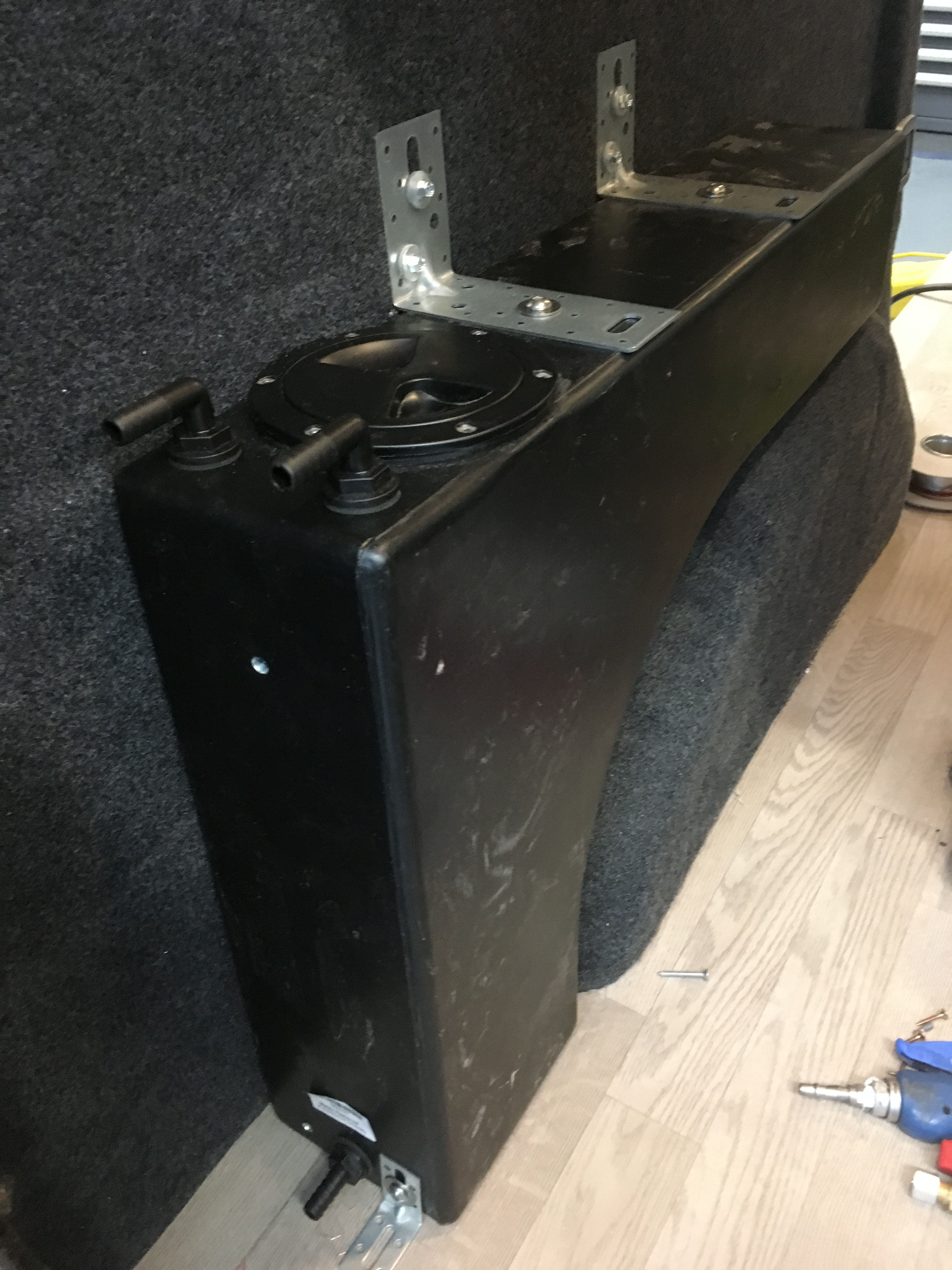

• 6 x M8 inserts moulded into the tank for easy mounting
• Quick and simple to install
• Utilises wasted space over the wheel arches
• Suitable for the storage of potable drinking water
• Coloured black to reduce the development of algae and retain freshness of your water
• No joins ensure a durable and long-lasting life

This tank has 6 x M8 inserts moulded into the tank for trouble-free mounting and is designed for the safe, reliable storage and transport of potable drinking water, grey or black waste water, industrial chemicals and much more (not designed for petrol or paraffin fuel storage).

Its black colour prevents light from entering the tank and therefore no algae or other organisms can grow, meaning your water will stay fresh for longer. As this tank is moulded and bears no joins, it promises a very long and trouble-free life.

Dimensions

Nominal capacity (Ltr): 24
Height (mm): 500
Width (mm): 750
Depth (mm): 150
Weight (kg): 3

Optional Extras

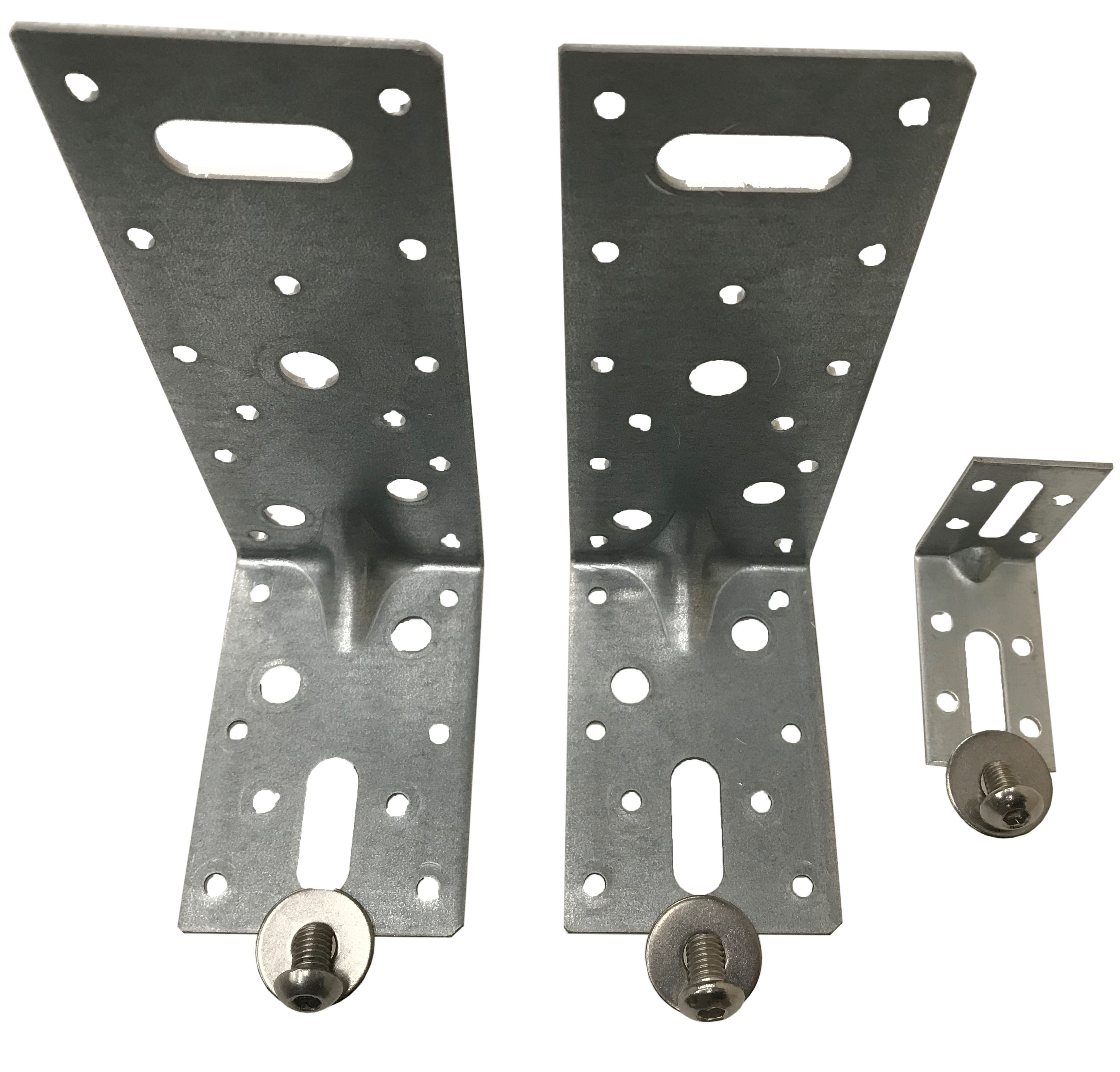

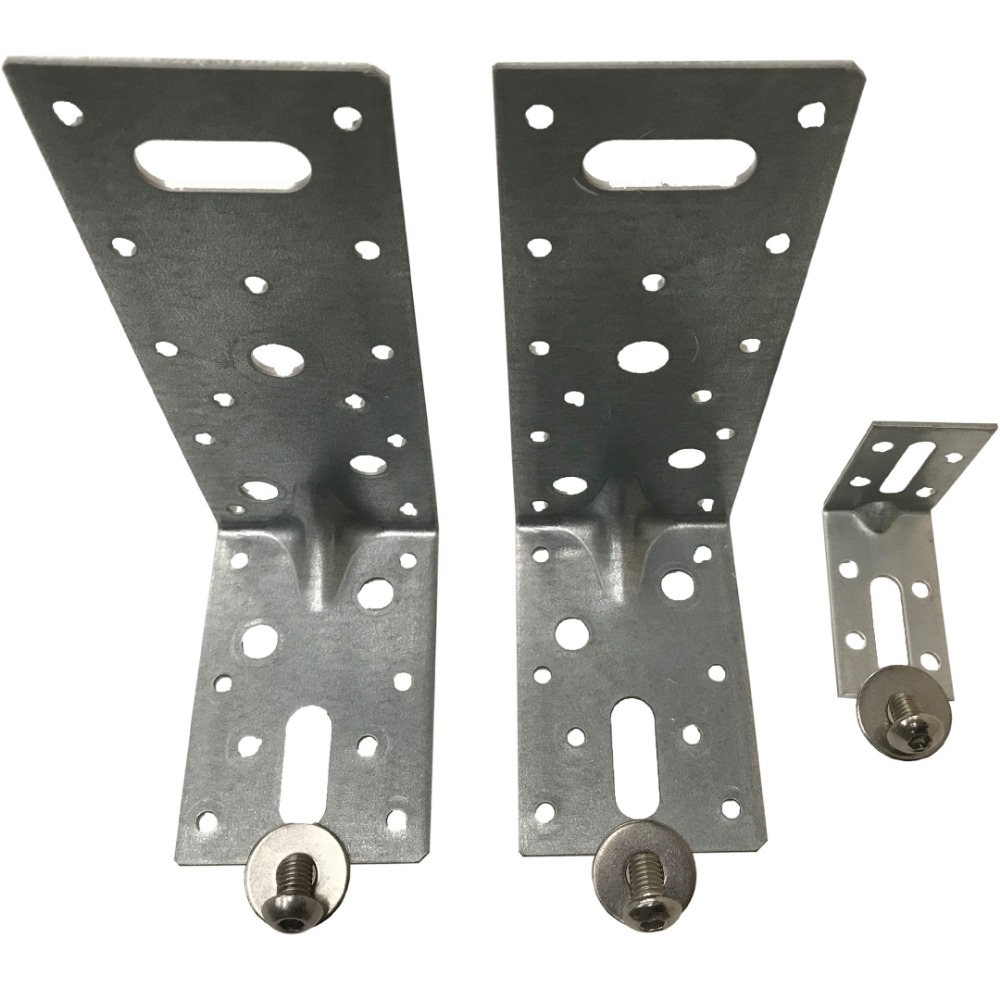

24 Litre Fitting Kit:

3 x M8 x 12mm socket button head stainless steel
3 x M8 x 25mm washer stainless steel
1 x 50mm x 55mm x 30mm angle bracket
2 x 150mm x 90mm x 60mm angle bracket

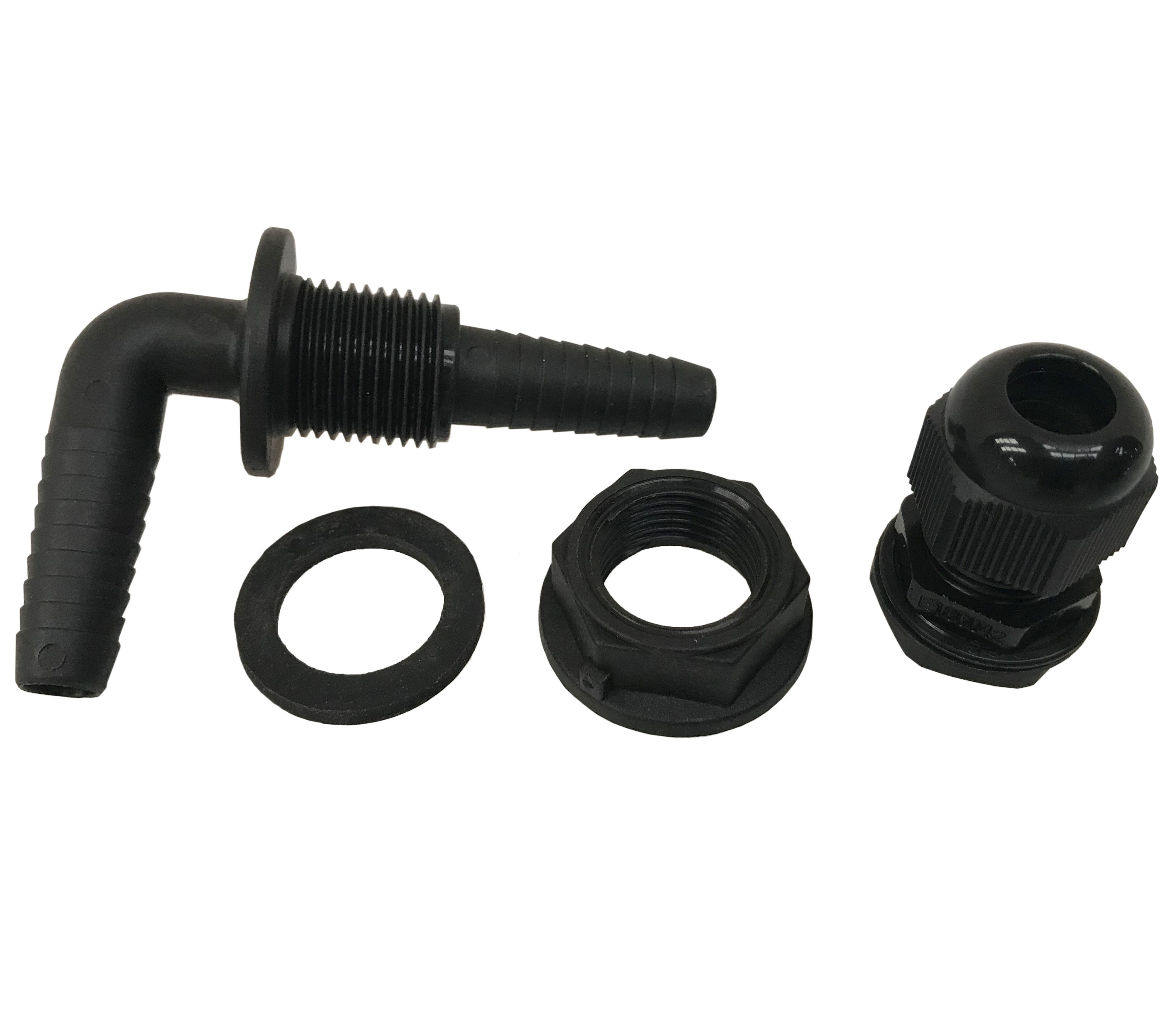

Submersible Pump Lid Kit:

This kit can be used to allow a submersible pump to be connected through the lid.

1 x ½” BSP 90° bulkhead hose tail 11-13mm
1 x ½” BSP back nut
1 x ½” BSP gasket
1 x cable gland
1 x 10 metre roll PTFE tape

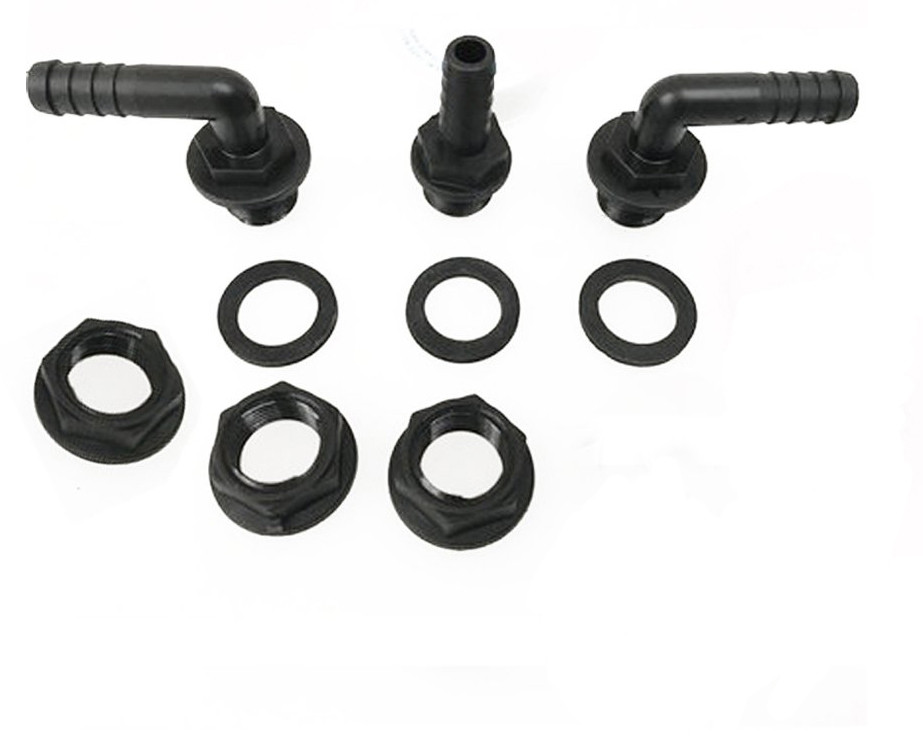

Plumbing Kit:

This kit has all the fittings required for the outlet, inlet and vent hoses.

1 x ½” BSP x 13mm hose tail
2 x ½” BSP 90° hose tail
3 x ½” BSP gasket
3 x ½” BSP back nut
