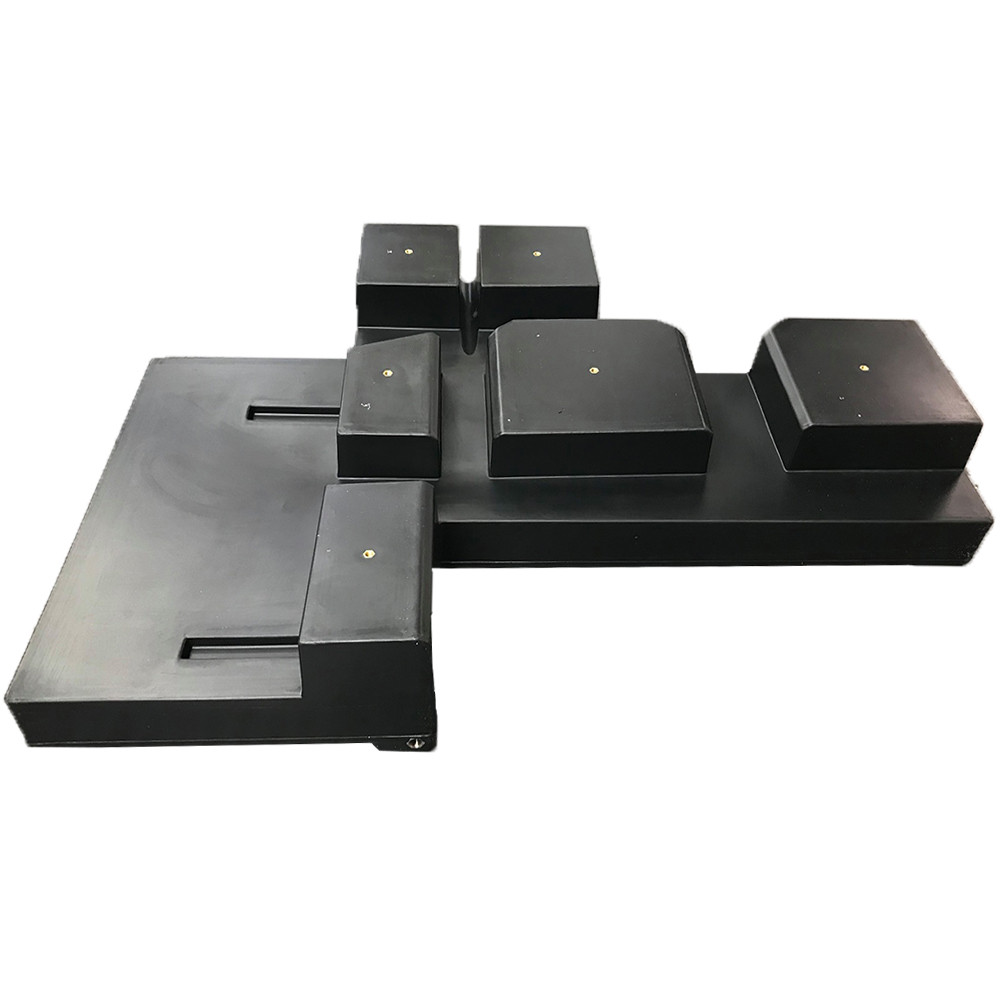

180 Litre Underslung Water Tank for VW Crafter

• Leaves vehicle bed space completely unhindered and provides an ample 180L capacity – thanks to underslung design
• Constructed from highly durable and potable MDPE – suitable for storing drinking water
• Maximises available capacity thanks to built-in brass vents, letting the tank fill completely.
• Easy installation thanks to built in threaded inserts, which allow mounting brackets to be fit without causing damage
• Designed to fit either Volkswagen Crafter or MAN TGE vans

Our 180 litre underslung water tank is a perfect fit for either Volkswagen Crafter or MAN TGE (2017 to present) vans. Designed to fit front-wheel drive LWB and XLWB models.

The generous 180 litre capacity adds an extra level of utility for your van or another level of self-sufficiency to your camper conversion. The tank itself is constructed from highly durable and potable MDPE, making the tank suitable for storing drinking water, black/grey wastewater and even certain chemicals.

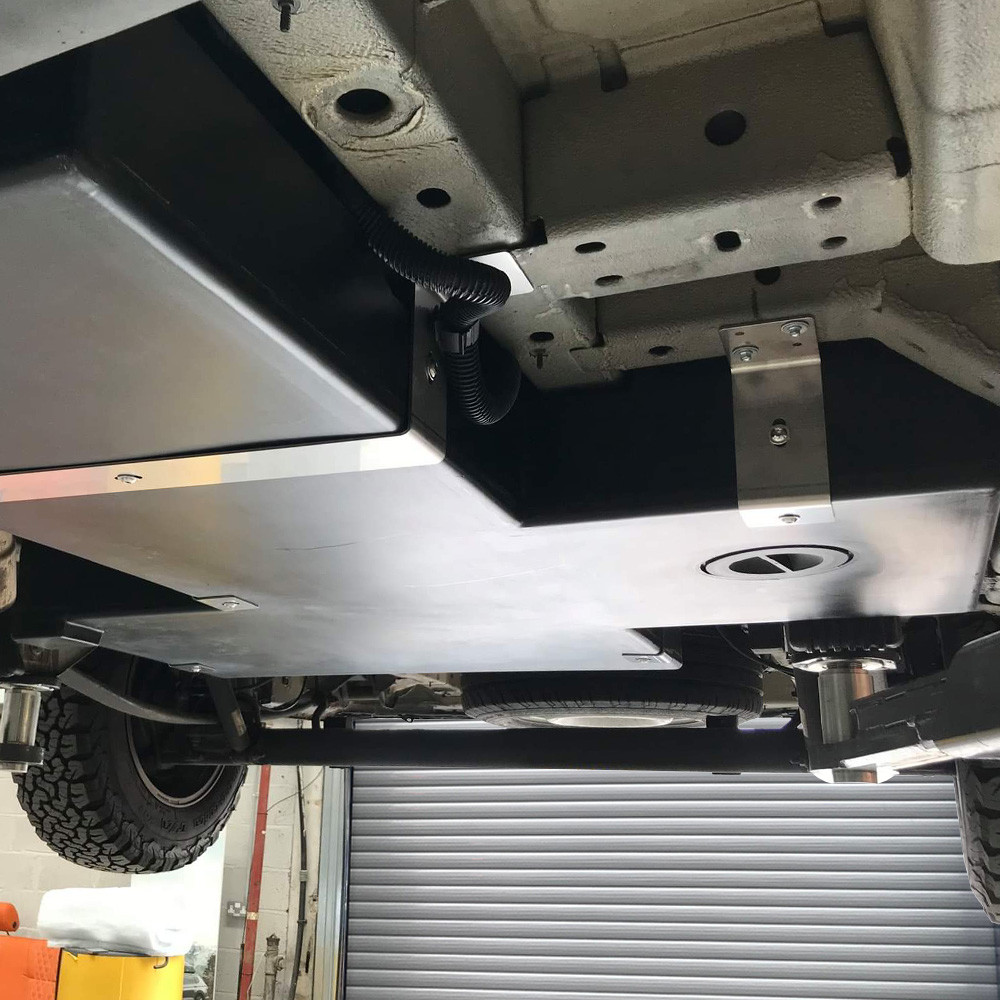

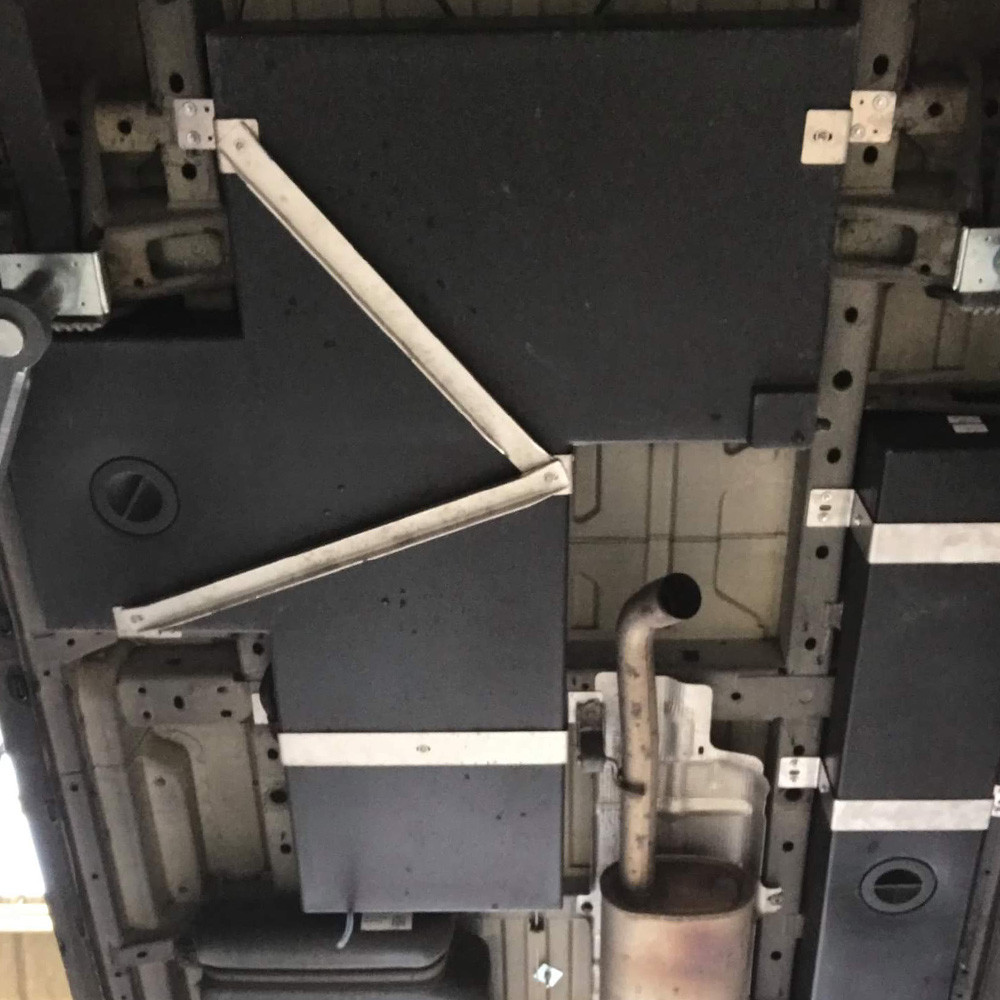

Thanks to the underslung design, this tank allows you to transport water without sacrificing valuable space in your van's interior. And thanks to the tank's black colour, it also deters the development of algae – reducing the amount of UV light that can enter the tank, keeping your water fresh for longer.

Pre-fit with a ½” BSP inlet and outlet, the tank requires no additional modification to get started plumbing. The outlet is positioned at the lowest point of the tank, allowing you to drain as much of the tank as possible – reducing the amount of waste. Also, pre fit to the tank are threaded inserts, which when combined with our bracket set allow you to mount the tank to the underside of your van; without having to risk drilling into the walls of the tank.

Details of this tank’s parts kits can be found below.

Bracket kit

This set provides you with everything you’ll need to mount this tank.

Contents:

5 x Mounting Brackets

11 x M8 x 16mm Socket Button Heads – 18mm Flange S/S+

14 x 5.5 x 25mm Evoshield TEK 3 Screws

1 x ½” BSPM x 13mm 90 Degree Hosetail

1 x ½” BSPM x 13mm Straight Hosetail

1 X M10 Threaded Bolt


Plumbing kit

This kit has all the fittings required for an outlet, inlet and vent hoses.

Contents:

1 x ½” BSP x 13mm hose Tail

2 x ½” BSP 90° hose tail

3 x ½” BSP gasket

3 x ½” BSP back nut

1 x 10 metre roll PTFE tape
