This water tank is a complete solution for loft water storage or as an additional expansion tank. The tank is supplied with an installation kit as standard; which is sealed inside the tank for delivery purposes. The only extras you need are the copper tubes/pipes.
This water tank is manufactured from polyethylene plastic, creating a strong and durable mould to guarantee a long product life. Loft water tanks are mainly used as part of a gravity fed (fully vented) central heating system.
This WRAS approved loft tank complies with British standards to hold potable water. This product can be used as a replacement tank, extra tank or to be installed in new builds.

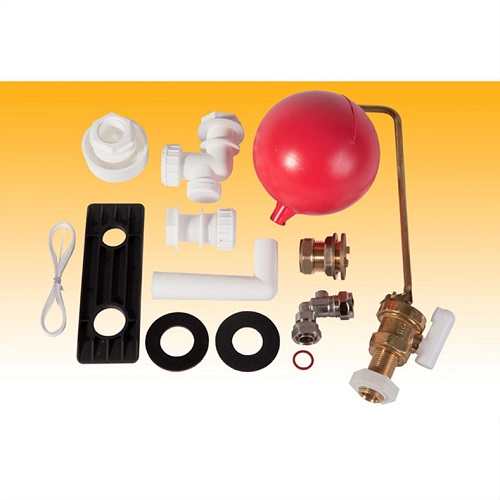

Installation Kit Includes
Byelaw 30 kit; which includes
- Screened warning pipe elbow
- Ball valve back plate (suitable for ½” or ¾” ball valve)
- Rubber sealing washer
Also Included
- Snap on lid
- ½” BS1212 Part 2 ball valve
- 4½” float
- 15mm compression tank connector
- Insulation and ties
Dimensions;
- Length: 480mm
- Height: 320mm
- Width: 250mm
This product comes with a 12 month manufacturer’s warranty.

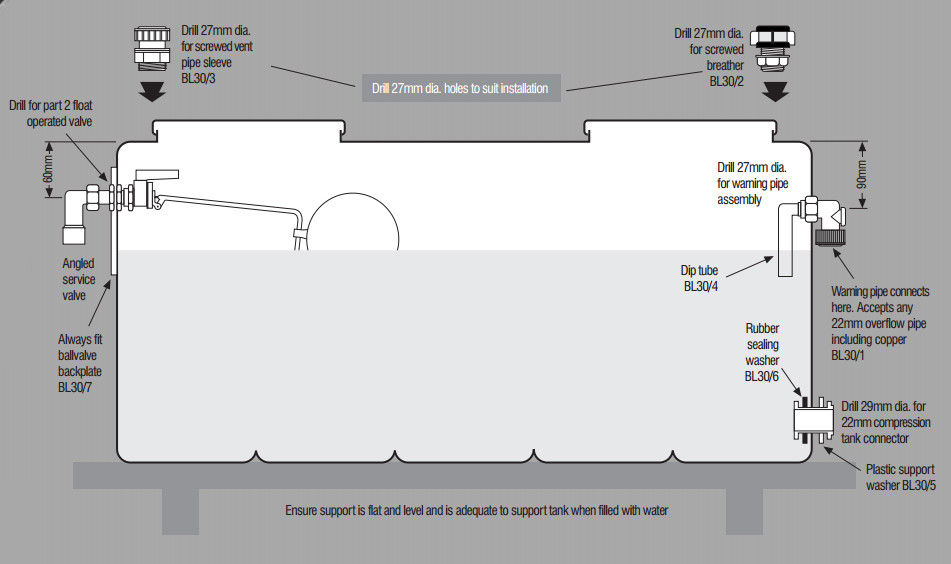

Below is a diagram of the installation required, showing where the inlet and outlets should be drilled.
Specification
- Weight - kg
- 6
- Length - mm
- 480
- Width - mm
- 250
- Height - mm
- 320
- Capacity - Litres
- 18
- Capacity - Gallons
- 4
- Suitable for Drinking Water (Potable)
- Yes
- WRAS Approved
- Yes
- Construction Material
- Polyethylene
