114 Litres Cold Water Coffin Loft Tank

This water tank is a complete solution for loft water storage or as an additional expansion tank. The tank is supplied with an installation kit as standard; which is sealed inside the tank for delivery purposes. The only extras you need are the copper tubes/pipes.

This water tank is manufactured from polyethylene plastic, creating a strong and durable mould to guarantee a long product life. Loft water tanks are mainly used as part of a gravity fed (fully vented) central heating system.

This WRAS approved loft tank complies with British standards to hold potable water. This product can be used as a replacement tank, extra tank or to be installed in new builds.

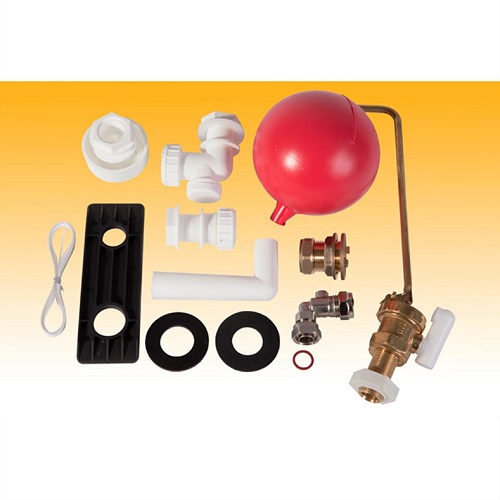

Kit includes;

Byelaw 30 kit; which includes

• Screened warning pipe elbow
• Dip tube
• Ball valve back plate (suitable for ½” or ¾” ball valve)
• Plastic support washer
• Rubber sealing washer
• Insulation jacket ties
• Screwed breather
• Screwed vent pipe sleeve

Also included;

• Snap on lid
• ½” BS1212 part 2 ball valve
• 4½” float
• 22mm compression tank connector
• 15mm x½” angles service valve
• Insulation jacket
• Installation instructions

Dimensions;

• Length: 1390mm
• Height: 310mm
• Width: 500mm

This product comes with a 12 month manufacturer’s warranty.

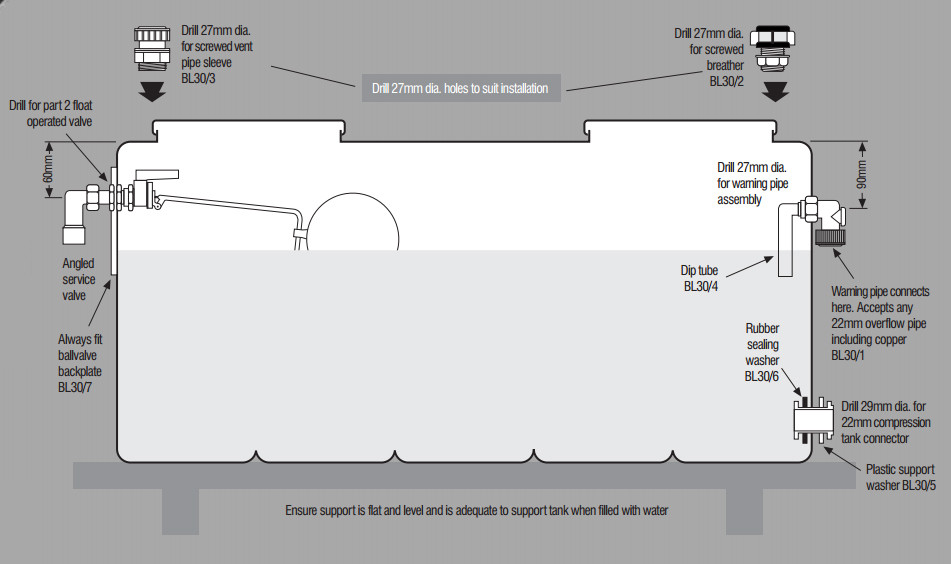

Below is a diagram of the installation required, showing where the inlet and outlets should be drilled.

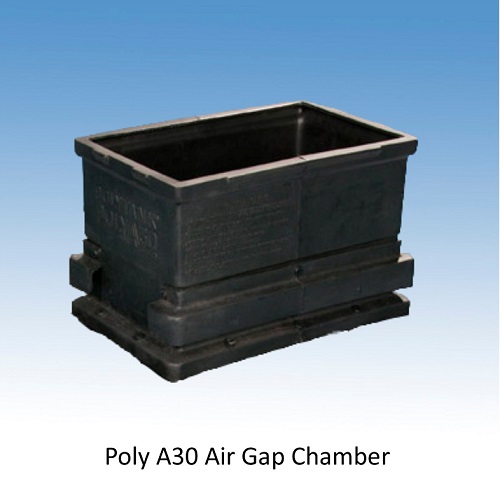

The optional Poly A30 is a backflow and back siphonage prevention device also known as an AB air gap. It protects incoming mains water from contaminants which may have entered the cold water storage tank for processes which are carried out at the point of use or from water that has been added to the tank that isn’t mains supplied.

It is ideal for use in industrial situations such as in dentist’s surgeries (bodily fluids) and bakeries (yeast) or where water is fed to animals (disease).

It protects against the highest level, fluid category 5 risk laid down by the Department of the Environment and WRAS (Water Regulations Advisory Scheme).

The package includes:

• A raised chamber which fits to the lid area of the tank
• Extended ball valve arm which replaces the arm supplied as standard with the tank
• Fixing screws
• J4 Insulation
• Seal
